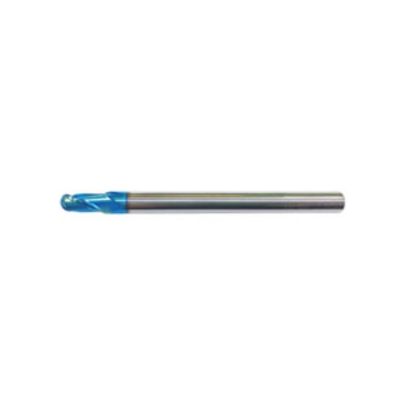

2 FLUTES BALL END MILLS

Get a Price/Quote

MOQ : 1 Unit

2 FLUTES BALL END MILLS Specification

Size
Available from 1mm to 25mm diameter

Noise Level
Low (depends on machine used)

Features
Sharp cutting edges, wear-resistant, long tool life

Usage & Applications
Milling, profile cutting, contouring, slotting, mold & die manufacturing

Shape
Ball Nose, Cylindrical Shank

Surface Finish
Smooth, Mirror Finish

Diameter
1mm to 25mm

Drive Type
Manual or CNC machine driven

Capacity
Suitable for high performance machining

Lubricating System
Optional external lubrication recommended

Product Type
2 Flutes Ball End Mills

Material
High-Speed Steel (HSS), Solid Carbide

Technology
Precision Ground

Power Source
Manual

Surface Treatment
Polished

Dimension (L*W*H)
Varies as per size

Weight
Variable according to diameter and length

Color
Metallic Grey

Maximum Cutting Speed
Depends on material grade and application

Helix Angle
30°

Hardness
Up to 58 HRC

Tolerance
High precision, +/-0.01mm

Pack Quantity
As per order / standard pack

Compatibility
CNC, Conventional Milling Machines

Coating Type
Uncoated or TiN, TiAlN coated available

Cutting Direction
Right Hand

Number of Flutes
2

Shank Type
Straight Shank

About 2 FLUTES BALL END MILLS

Product Description

An end mill can be defined as a shank-type milling cutter with a cutting blade on the outer circumferential and end surfaces, a cutting tool that can cut the side of the workpiece with the outer circumferential blade and the top of the workpiece with the bottom blade. Our products are verified and produced based on many years of experience and know-how for high efficiency and high life of tools.

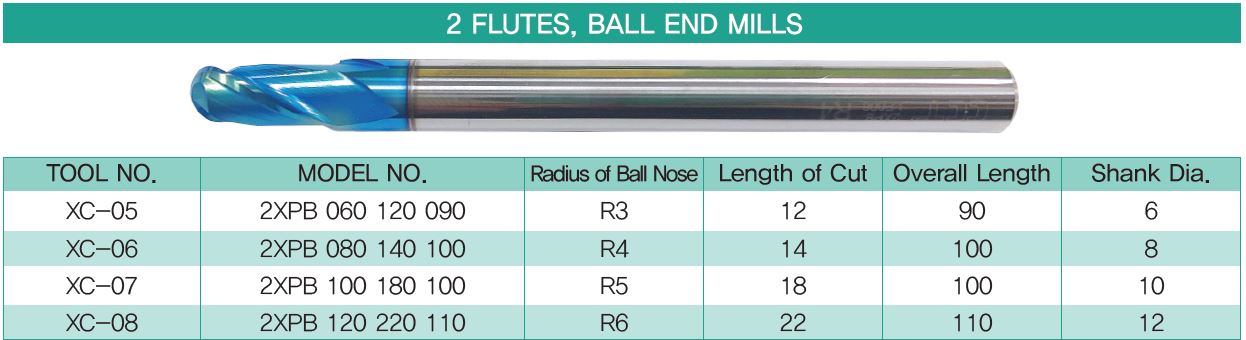

Specification

Company Profile

Our main business is manufacturing and selling special carbide cutting tools such as end mills, drills, and reamers. In order to
leap far, we strive to grow into a top-notch company in the same industry by harmonizing and cooperating with people with an open mind.
We value people and work environment, and do our best to develop technology through nurturing human resources so that they can demonstrate creative abilities and We will be a global value creator. In addition, CasCadeTech co., ltd. is based on honesty and trust. While continuing to develop with profits created through transparent and solid corporate management, We will contribute to
human society.

High Precision Engineering

These 2 Flutes Ball End Mills are engineered to deliver high precision with a tolerance of +/-0.01mm. Manufactured from HSS or Solid Carbide, the tools ensure excellent dimensional accuracy, making them perfect for intricate milling, mold, and die applications where exactness is vital.

Versatile Applications and Compatibility

Suitable for both CNC and conventional milling machines, these ball nose end mills excel at a range of tasks-profile cutting, slotting, contouring, and more. Their 30 helix angle combined with a smooth, mirror-polished finish promotes efficient chip evacuation and superior surface quality.

Durable Coating and Surface Finish Options

Choose between uncoated, TiN, or TiAlN coated variants to suit your machining requirements. These options offer enhanced wear resistance, prolong tool life, and ensure consistent performance across various material grades and cutting environments.

FAQ's of 2 FLUTES BALL END MILLS:

Q: How should I choose between HSS and Solid Carbide 2 Flutes Ball End Mills?

A: The material selection depends on your application: HSS is suitable for general-purpose and lower-speed jobs, while Solid Carbide is preferable for higher speed, harder materials, and applications requiring greater tool longevity and precision.

Q: What are the benefits of using TiN or TiAlN coated end mills over uncoated ones?

A: TiN and TiAlN coatings significantly improve wear resistance, reduce friction, and extend tool life, especially during high-speed machining or when cutting harder materials. Uncoated tools are more economical and suitable for softer materials or lower-speed operations.

Q: When should external lubrication be used with these ball end mills?

A: External lubrication is recommended when machining tough materials or running at higher speeds, as it aids in chip evacuation, reduces cutting temperature, and extends tool life-especially in demanding contouring or slotting tasks.

Q: Where can 2 Flutes Ball End Mills be used effectively?

A: These end mills are effective in mold and die manufacturing, profile cutting, slotting, contouring, and finishing processes on both CNC and manual milling machines. Their versatility makes them suitable for a variety of industries, including automotive, aerospace, and toolmaking.

Q: What is the process for selecting the appropriate diameter and flute length for my milling task?

A: Choose the diameter and length based on your workpiece's dimensions and cutting depth requirements. Larger diameters and longer lengths are suitable for roughing or bulk material removal, while smaller sizes excel in precision finishing and intricate contouring work.

Q: How does the ball nose shape improve milling outcomes compared to flat end mills?

A: The ball nose design enables smoother contouring and curved surface finishing, minimizes tool marks, and is ideal for complex 3D machining required in mold and die applications. It also reduces the risk of chipping at sharp corners.
