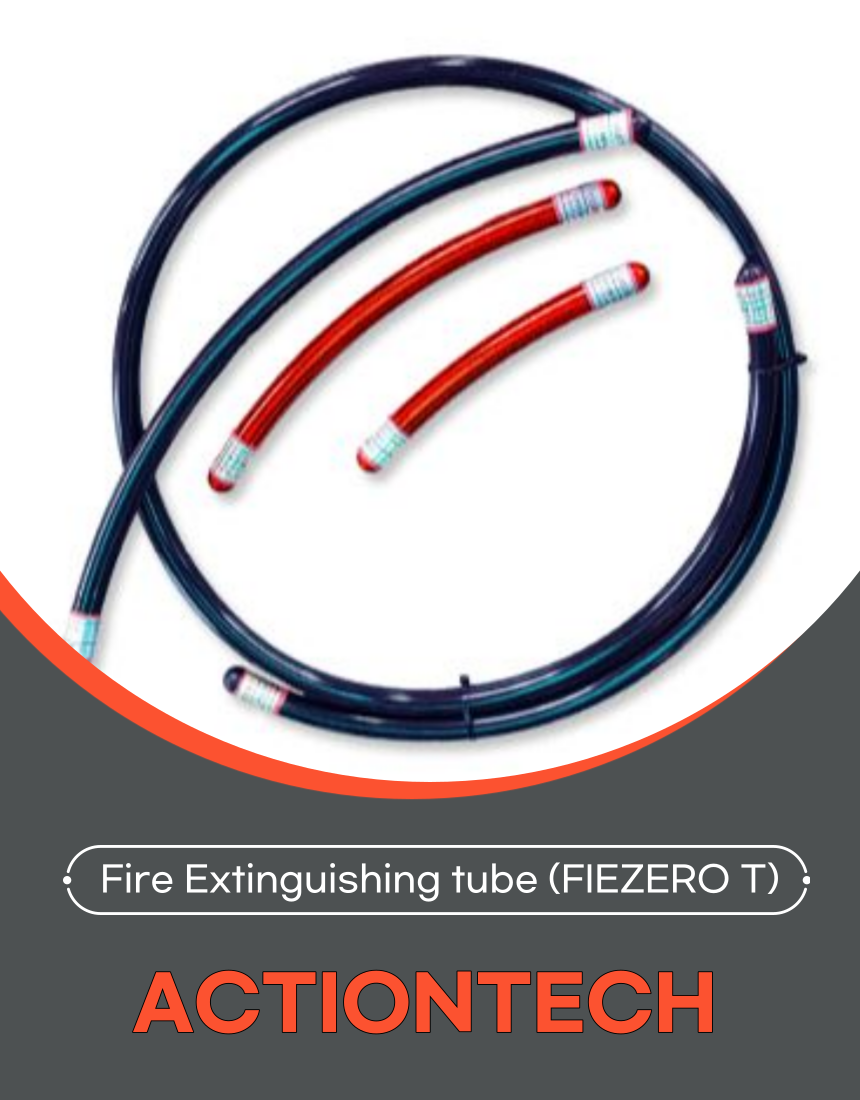

Fire Extinguishing tube (FIREZERO T)

Get a Price/Quote

MOQ : 500 Units

Fire Extinguishing tube (FIREZERO T) Specification

Capacity
Supports various clean agent capacities based on system design

Shape
Flexible Tubing

Features
Direct & indirect extinguishing, quick detection, maintenance-free, flexible installation

Noise Level
Silent Operation

Drive Type
Self-Actuating

Diameter
6mm to 8mm

Size
6mm / 8mm (Outer Diameter)

Usage & Applications
Engine compartments, Electrical panels, Industrial machinery protection, Server racks

Surface Finish
Glossy

Product Type
Fire Extinguishing Tube

Material
Special Polymer Blend

Technology
Pneumatic Heat Detection & Release

Power Source
Automatic (No external power required)

Pressure
18 Bar (Average Operating)

Surface Treatment
Smooth Finish

Dimension (L*W*H)
Customizable (commonly supplied in 10m or 20m rolls)

Weight
Approximately 0.3-0.4 kg/meter

Color
Red

End Connections
Brass, Stainless Steel, or Polyamide Fittings

Life Expectancy
Up to 10 Years

Mounting Accessories
Clips, Brackets available on request

Storage Conditions
Store in cool, dry place away from direct sunlight

Maintenance
Virtually maintenance-free; periodic visual inspection recommended

Resistance
UV Resistant, Corrosion Resistant, Chemical Resistant

Working Temperature Range
-20°C to +80°C

Compatible Agents
Novec 1230, FM-200, HFC-227ea, ABC Dry Powder

Burst Temperature
~100°C to 120°C (212°F to 248°F)

Activation Method
Pneumatic (Tube bursts upon direct flame/heat exposure)

Compliance
RoHS Compliant, Eco Friendly

Installation Type
Indoor/Outdoor

About Fire Extinguishing tube (FIREZERO T)

Product Description

Product Feature
An Innovative Product with
Fire Zero : Extinguishing the fire within a second
Power Zero : No electric power needed
Installation Zero : Easy Installation
Maintenance Zero : No Maintenance Needed
Toxic Zero : Harmless to humans
Residue Zero : No Residual substance after extinguishment
Ultra Light : Products weights : 70g
Low Cost : Competitive price : contact us

Product Use

Electric boards, Switch boards, Safes, Servers, Electric Lockers and other medium, large sized Cabinets

Company Profile

since the establishment in 1999, Actiontech has made continuous and tremendous efforts to pioneering the future and contributing to the advance system of mankind by developing and providing the RFID related security solution and system under a business philosophy of elevation the quality of human life. I believe that the present success of Actiontech is by virtue of our valuable customer concern and encouragement. In order to meet the demand of customers, we have devoted our core capability to the development of technologies. With our novel ideas and unique solutions, we take pride in having contributed to the creation of convenient and safe world. Now, Actiontech promises to be a global company that cultivates the better future and leads the ubiquitous world by making continuous efforts to contribute the development of mankind. Thank you.

Rapid Heat Detection and Suppression

FIREZERO T employs pneumatic technology, enabling the tube to respond instantly by bursting when exposed to direct flames or intense heat. This immediate reaction delivers extinguishing agents directly to the source, ensuring fast suppression and minimal fire damage.

Flexible and Versatile Installation

Thanks to its flexible construction and compatibility with various mounting accessories, FIREZERO T can be customized for diverse environments. Whether installed in engine bays, electrical enclosures, or industrial machinery, its adaptability saves on space and ensures discreet fire protection.

Low Maintenance and Eco-Friendly

Engineered for durability and efficiency, the FIREZERO T tube requires only periodic visual inspections. Its long life expectancy, non-electric design, and eco-friendly, RoHS-compliant materials make it a sustainable choice for modern fire protection needs.

FAQ's of Fire Extinguishing tube (FIREZERO T):

Q: How does the FIREZERO T tube detect and suppress fires automatically?

A: The FIREZERO T utilizes a pneumatic design, bursting at temperatures around 100C to 120C upon contact with direct flame or intense heat. This activates the immediate release of the extinguishing agent directly at the fire source, ensuring fast and effective suppression without the need for external power.

Q: What types of extinguishing agents are compatible with this system?

A: The FIREZERO T tube supports a range of clean agents, including Novec 1230, FM-200, HFC-227ea, and ABC dry powder. The selection can be tailored based on the hazards and application requirements of your environment.

Q: Where can the FIREZERO T be installed and used?

A: With its robust construction and resistance to UV, chemicals, and corrosion, the FIREZERO T is suitable for protecting engine compartments, electrical panels, server racks, and industrial machinery in both indoor and outdoor settings.

Q: What maintenance does the FIREZERO T system require?

A: FIREZERO T is designed to be virtually maintenance-free. It is recommended to perform periodic visual inspections to ensure the integrity of the tubing and fittings. Detailed maintenance schedules can be set based on specific site conditions.

Q: What are the benefits of using a pneumatic, self-actuating fire tube?

A: A pneumatic, self-actuating tube like FIREZERO T operates without external power, ensures silent activation, provides rapid and localized extinguishing, and minimizes damage. Its flexible, customizable design also simplifies installation even in challenging layouts.

Q: How should the FIREZERO T be stored before installation?

A: For optimal longevity and performance, FIREZERO T should be stored in a cool, dry location, away from direct sunlight. This preserves its material integrity and readiness for deployment.
