4 FLUTES SQUARE END MILLS

Get a Price/Quote

MOQ : 1 Unit

4 FLUTES SQUARE END MILLS Specification

Surface Finish
Polished, Coated for Reduced Friction

Drive Type
Shank Drive

Lubricating System
External/Lubricating Fluid Recommended

Size
1mm to 20mm Diameter (Common sizes: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm)

Noise Level
Depends on Machine Used

Features
High Precision, High Wear Resistance, Multiple Flutes for Improved Finish, Suitable for High Speed Machining

Usage & Applications
Precise Milling, Slotting, and Side Milling of Steel, Alloy, Graphite, Plastics, etc.

Shape
Square End

Diameter
1mm to 20mm

Capacity
N/A (Varies by Machine and Material)

Product Type
4 Flutes Square End Mills

Material
High Speed Steel (HSS), Carbide

Technology
CNC Grinding

Power Source
Manual/Mechanical

Surface Treatment
TiN/TiAIN Coated or Uncoated

Dimension (L*W*H)
Varies - Standardized by Diameter and Length (e.g., 6x60mm, 8x75mm)

Weight
Depends on Size (approx. 20g - 200g)

Color
Gold, Silver, Black (Depending on Coating)

Coolant Compatibility
Compatible with Emulsion and Oil-Based Coolants

Number of Flutes
4

Packaging
Individual Plastic Box or Tube

Cutting Direction
Right Hand

Tolerance
h6 (Standard)

Shank Type
Straight Shank

Hardness
HRC 45-68 (Depending on Material)

Resharpenable
Yes

Helix Angle
30° (Standard), Other Angles Available

Application Material
Mild Steel, Cast Iron, Stainless Steel, Copper, Wood, Plastics

About 4 FLUTES SQUARE END MILLS

Product Description

An end mill can be defined as a shank-type milling cutter with a cutting blade on the outer circumferential and end surfaces, a cutting tool that can cut the side of the workpiece with the outer circumferential blade and the top of the workpiece with the bottom blade. Our products are verified and produced based on many years of experience and know-how for high efficiency and high life of tools.

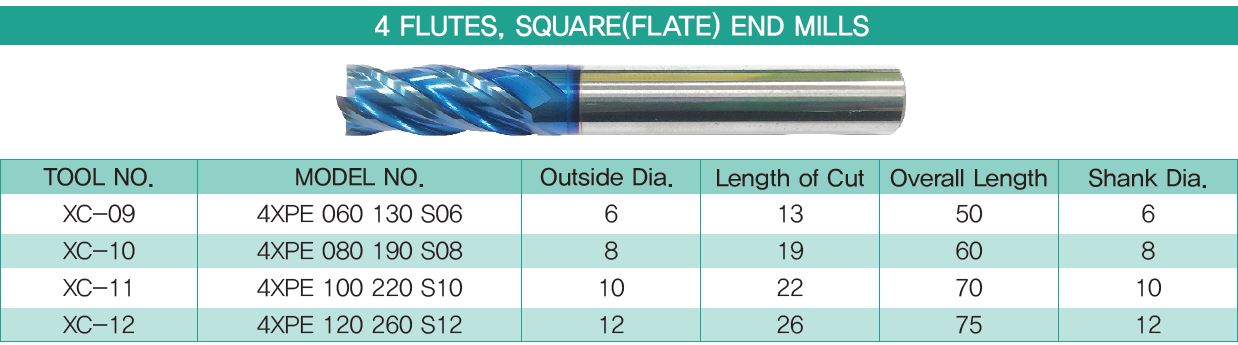

Specification

Company Profile

Our main business is manufacturing and selling special carbide cutting tools such as end mills, drills, and reamers. In order to
leap far, we strive to grow into a top-notch company in the same industry by harmonizing and cooperating with people with an open mind.
We value people and work environment, and do our best to develop technology through nurturing human resources so that they can demonstrate creative abilities and We will be a global value creator. In addition, CasCadeTech co., ltd. is based on honesty and trust. While continuing to develop with profits created through transparent and solid corporate management, We will contribute to
human society.

Wide Material Compatibility

These 4 Flutes Square End Mills are engineered for versatility, capable of processing materials such as mild steel, cast iron, stainless steel, copper, wood, and plastics. With a hardness range between HRC 45-68 depending on tool material, and precise h6 standard tolerance, operators can rely on accurate results for both roughing and finishing applications.

Advanced Coating & Surface Technology

Choose from TiN, TiAIN-coated, or uncoated options for the best fit to your machining requirements. The advanced coating technologies provide superior wear resistance, reduced friction, and prolonged tool life, while polished finishes ensure cleaner, more efficient cuts, even at high speeds. These features collectively enhance both performance and longevity.

Precision and Efficient Design

Designed with CNC grinding technology and a 4-flute configuration, these square end mills offer greater stability and improved surface finishes. The straight shank and shank drive ensure easy installation and compatibility across a broad range of machines. Lubrication compatibility and resharpenable design offer flexible, long-term usage.

FAQ's of 4 FLUTES SQUARE END MILLS:

Q: How should I select the right 4 Flutes Square End Mill for my material?

A: Choose the end mill material (HSS or carbide) and the surface treatment (TiN, TiAIN, or uncoated) based on the workpiece. For hard metals like stainless steel or cast iron, opt for carbide with TiAIN coating. For plastics or wood, HSS with TiN coating or an uncoated option may suffice.

Q: What are the recommended applications for these end mills?

A: These end mills are ideal for precise milling, slotting, and side milling on materials such as steel, alloy, graphite, plastics, and more. Their multiple flute design enhances finishing capability and efficiency during high-speed machining.

Q: When is it necessary to resharpen the end mill, and is it possible?

A: Resharpening should be considered when you notice decreased cutting performance, tool wear, or surface finish degradation. These end mills are resharpenable, extending their service life and utility for various applications.

Q: Where can these end mills be used?

A: They are suitable for use in workshops, CNC machining centers, manufacturing plants, and industries working with a broad range of materials. Common sectors include automotive, metalworking, woodworking, and plastics fabrication.

Q: What is the process for maintaining optimal tool performance?

A: Maintain performance by using appropriate coolant (emulsion or oil-based), ensuring your machine matches the diameter and speed requirements, and periodically checking for wear. Store each tool in its individual packaging to avoid damage.

Q: How do these end mills benefit production operations?

A: Their high precision, wear resistance, multiple flute design, and compatibility with different coolants reduce tool changes, improve surface finish, and boost machining speed, leading to higher productivity and cost efficiency.
