Automotive LED module

Get a Price/Quote

MOQ : 1000 Units

Automotive LED module Specification

Power Source
Vehicle Battery

Dimension (L*W*H)
Varies by specific lamp application

Usage & Applications

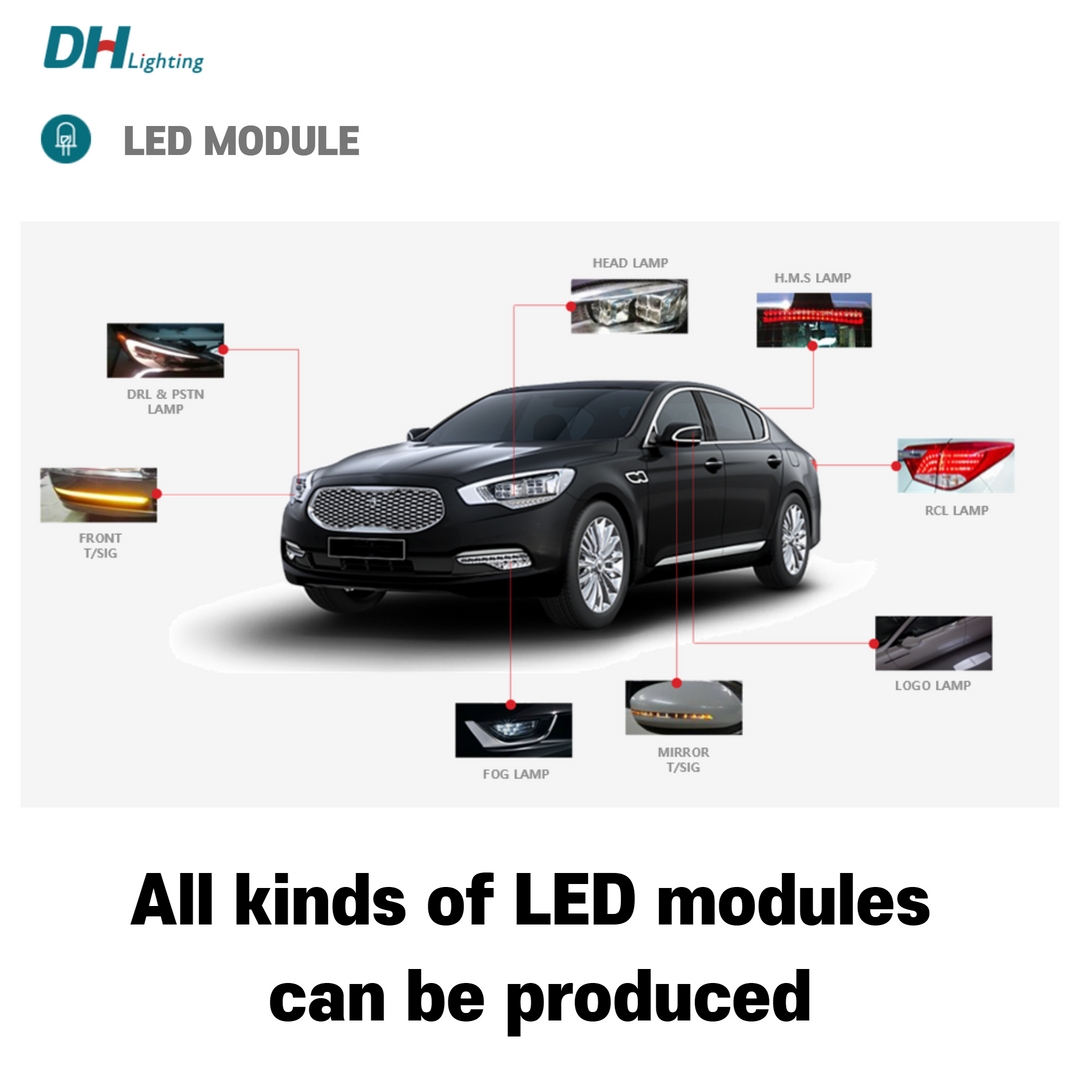

Head Lamp, Tail Lamp, Stop Lamp, Fog Lamp, DRL (Daytime Running Light), Side Lamp

Lighting Type
LED Automotive Tail/Head/Side/Fog/DRL Lights

Hardness
IK07-IK09 rated (Impact Resistant Lens)

Size
Custom/Standard as per application

Thickness
8-20 mm (varies by design)

Capacity
Up to 1800 Lumens/module

Vehicle Model
Universal - Suited for most modern cars

Weight
60-120 g (depending on module type)

Installation Type
OEM Fit, Plug & Play

Technology
SMD LED, COB LED, Multi-chip LED, Optical Lens Technology

Feature
High Brightness, Energy Saving, Long Life, Vibration Resistant, Instant On/Off

Voltage
12V/24V DC

Length
25 mm - 180 mm (customized for lamp type)

Diameter
As per lamp requirement

Product Type
Automotive LED Module

Material
High Quality Polycarbonate, Aluminum Housing

Vehicle Type
Passenger Car, SUV, Commercial Vehicle

OE Number
Custom/OEM Compatible

Beam Angle
120 (Standard, varies by application)

Response Time
Instant, <0.1s

Connector Type
Standard Automotive Connectors, Customizable

Heat Dissipation
Integrated Heat Sink Design for Efficient Cooling

Chip Brand
Osram, Cree, Philips, Samsung (as per customization)

Operating Temperature
-40C to +85C

Surface Treatment
UV Resistant Coating

Lifespan
>30,000 Hours

Color Temperature
5500K-6500K (Cool White), also available in Amber/Red/Blue as required

Waterproof Rating
IP67/IP68

About Automotive LED module

Product Description

- Automotive headlight LED module with excellent quality


1) Use of LED lamp with high lumen, high efficiency of automotive vehicles.
2) It is designed to consume low wattage with long life, high lumen. Additionally, it secures long-distance visuality and is mainly used for the newest fancy vehicles.

Specification

item	value
Place of Origin	South Korea
Warranty	1year
Type	LED module

Company Profile

DH Lighting has been leading Automotive Lighting Industry of the world under the spirit of Trust, Technology and Future since 1994. Automotive Halogen Bulbs are the main stay of DH Lighting which is well-known as EXCELITE brand through the export more than 50 countries as well as OEM supply to Korean and overseas car makers.

We have the largest production capacity of the bulbs in Asia which covers the full ranges with the highest OEM quality by its own automated production lines. Each manufacturing process in the factories is under the strict control with ISOTS 16949, IATF16949, ISO 9001 and OHSAS18001. All standard bulbs have been acquired the world top class quality approvals such as E1 and SAE DOT.

Efficient Cooling and Durability

The integrated heat sink design in these LED modules ensures superior heat dissipation, maintaining optimal performance even during prolonged use. Coupled with an aluminum housing and high-quality polycarbonate lens, this module offers resilience against shocks and harsh conditions, contributing to a lifespan of over 30,000 hours.

Versatile Applications and Customization

Designed for flexibility, our LED modules are compatible with a wide range of vehicles. With multiple color choices (cool white, amber, red, blue) and customizable sizes, these modules meet various lighting needs-headlamps, tail lamps, DRLs, and more. OEM fitment and universal connectors make them a perfect choice for both manufacturers and retrofitters.

Superior Resistance and Easy Installation

With IP67/IP68 waterproof rating, UV-resistant coating, and impact resistance (IK07-IK09), the module ensures reliable operation in all conditions. The plug & play installation using standard automotive connectors makes upgrading or replacement quick and straightforward, minimizing downtime and maintenance effort.

FAQ's of Automotive LED module:

Q: How do the Automotive LED modules manage heat effectively?

A: The modules feature an integrated heat sink design, crafted from aluminum, which efficiently dissipates heat generated during operation. This prevents overheating and extends the LED's lifespan, ensuring consistent high performance over time.

Q: What is the installation process for these LED modules?

A: Installation is plug & play, employing standard automotive connectors. Designed for OEM fitment, the modules can be directly mounted into headlamps, tail lamps, or other lighting assemblies without complex modifications.

Q: When should I use customized LED modules versus standard options?

A: Custom LED modules are ideal when specific dimensions, colors, or chip brands are needed for a particular lamp design or unique vehicle model. Standard options suit common replacements and universal applications across various modern cars.

Q: Where can these modules be used on vehicles?

A: These modules can be used in a variety of lighting positions: head lamps, tail lamps, stop lamps, fog lamps, daytime running lights (DRL), and side lamps. They are suitable for passenger cars, SUVs, and commercial vehicles.

Q: What are the benefits of choosing this LED module for automotive lighting?

A: Key benefits include high brightness, instant response time (<0.1s), energy savings, long operational life, vibration and impact resistance, and compatibility with harsh environments due to waterproof and UV-resistant features.

Q: How does the module ensure protection against water and dust?

A: With IP67/IP68 waterproof ratings and advanced surface treatments, the module prevents water and dust ingress even in severe weather or road conditions, ensuring reliable operation and safety.
