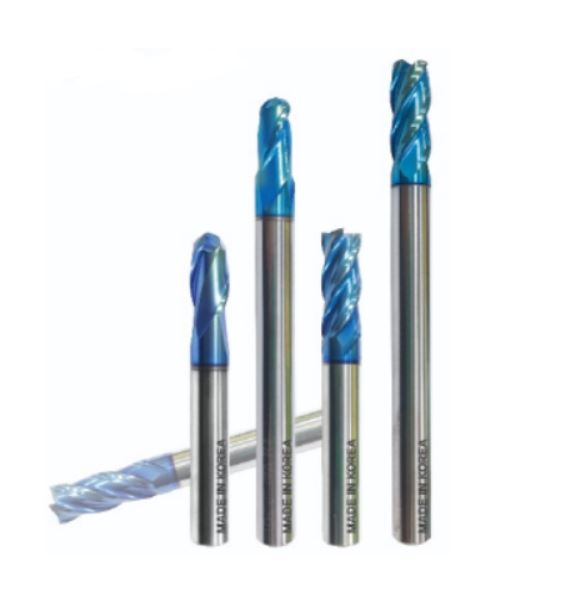

4 FLUTES CORNER RADIUS END MILLS

Get a Price/Quote

MOQ : 1 Unit

4 FLUTES CORNER RADIUS END MILLS Specification

Surface Finish
Super Fine, Mirror Finish

Features
4 Flutes, High Wear Resistance, Precision Ground, Long Tool Life

Noise Level
Low

Diameter
1 mm to 20 mm

Size
1 mm to 20 mm (Available Range)

Drive Type
Machine Tool Driven

Usage & Applications
Profile Milling, Slotting, Die & Mold Industries

Lubricating System
External or Minimum Quantity Lubrication (MQL) Recommended

Capacity
Suitable for High-Speed Cutting and High Feed Rates

Shape
End Mill with Corner Radius

Product Type
Corner Radius End Mills

Material
Solid Carbide

Technology
CNC Ground

Power Source
Manual/Machine Driven

Surface Treatment
TiAlN Coated

Dimension (L*W*H)
Varies by Size

Weight
Depends on Size

Color
Grey/Black (Coated Finish)

Corner Radius
0.2 mm to 4 mm (As per Specifications)

Packaging
Individual Plastic Tube

Hardness
Up to HRC 55-68

Tolerance
High Precision (+/- 0.01 mm)

Helix Angle
35° or As Required

Shank Type
Straight Shank

Cutting Direction
Right Hand

Application Material
Hardened Steel, Stainless Steel, Cast Iron, Titanium and Other Hard Materials

Number of Flutes
4

About 4 FLUTES CORNER RADIUS END MILLS

Product Description

An end mill can be defined as a shank-type milling cutter with a cutting blade on the outer circumferential and end surfaces, a cutting tool that can cut the side of the workpiece with the outer circumferential blade and the top of the workpiece with the bottom blade. Our products are verified and produced based on many years of experience and know-how for high efficiency and high life of tools.

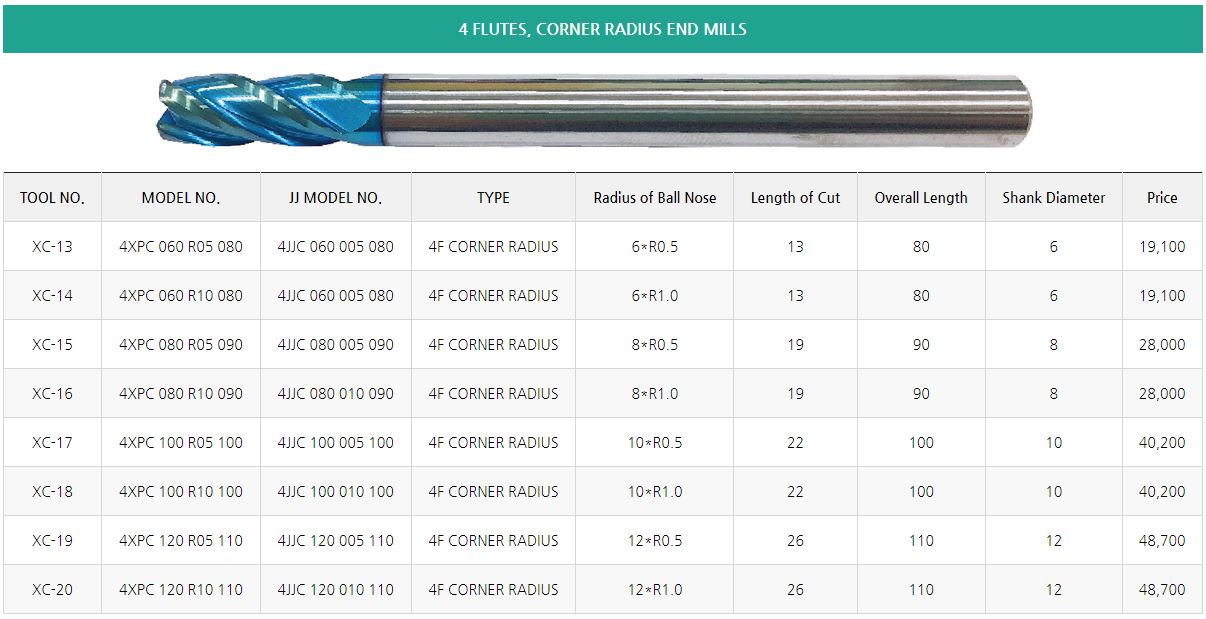

Specification

Company Profile

Our main business is manufacturing and selling special carbide cutting tools such as end mills, drills, and reamers. In order to
leap far, we strive to grow into a top-notch company in the same industry by harmonizing and cooperating with people with an open mind.
We value people and work environment, and do our best to develop technology through nurturing human resources so that they can demonstrate creative abilities and We will be a global value creator. In addition, CasCadeTech co., ltd. is based on honesty and trust. While continuing to develop with profits created through transparent and solid corporate management, We will contribute to
human society.

Precision Engineering for Superior Performance

Designed for manufacturers, suppliers, and traders in Korea South and beyond, these end mills deliver unmatched accuracy in machining hardened metals. High precision tolerances and robust carbide construction facilitate flawless profile milling and slotting, making them a preferred choice across die and mold industries.

Enhanced Durability with Advanced Coating

Thanks to premium TiAlN surface treatment and CNC grinding, these end mills offer superior resistance to wear and high temperatures. This technology ensures long tool life and consistent, mirror-finish surfaces even during intensive, high-speed operations.

FAQ's of 4 FLUTES CORNER RADIUS END MILLS:

Q: How do 4 Flutes Corner Radius End Mills benefit high-speed cutting applications?

A: With four flutes, high feed capacity, and solid carbide construction, these end mills provide excellent chip evacuation and stable performance during rapid machining. The TiAlN coating further enhances wear resistance, extending tool life even at high speeds.

Q: What materials can be machined using these corner radius end mills?

A: They are designed to process hardened steel, stainless steel, cast iron, titanium, and other hard materials up to HRC 55-68, making them versatile for a range of demanding industrial applications.

Q: When should I use a corner radius end mill instead of a regular square end mill?

A: Corner radius end mills are ideal when you need improved tool strength and reduced chipping at the edges. They're suitable for tasks requiring finer corner finishes or longer tool durability, particularly in die and mold making.

Q: Where are these end mills commonly applied in manufacturing?

A: They are widely used in die and mold industries for profile milling and slotting, as well as in precision engineering sectors that require high-quality surface finishes on hard metals.

Q: What process is used to achieve high precision and mirror finish on these tools?

A: Each tool is CNC ground to tight tolerances of +/- 0.01 mm and treated with an advanced TiAlN coating, ensuring superior accuracy and a mirror-finish surface, even under extensive use.

Q: How should these end mills be used for optimal performance and longevity?

A: For the best results, operate them with recommended external or minimum quantity lubrication (MQL) systems. Using proper feed rates and maintenance will further enhance their durability and machining consistency.
