Our main business is manufacturing and selling special carbide cutting tools such as end mills, drills, and reamers. In order to
leap far, we strive to grow into a top-notch company in the same industry by harmonizing and cooperating with people with an open mind.
We value people and work environment, and do our best to develop technology through nurturing human resources so that they can demonstrate creative abilities and We will be a global value creator. In addition, CasCadeTech co., ltd. is based on honesty and trust. While continuing to develop with profits created through transparent and solid corporate management, We will contribute to
human society.
2 FLUTES SHORT BALL END MILLS
Product Details:
- Features High precision, sharp cutting edge, extended tool life, efficient chip removal
- Capacity Varies by size/material removal rate
- Surface Finish Polished or Coated
- Shape Short ball nose, 2 flutes
- Noise Level N/A (passive tool)
- Diameter 2mm to 20mm
- Lubricating System External - as per machining requirements
- Click to View more
X
2 FLUTES SHORT BALL END MILLS Price And Quantity
- 1 Unit
2 FLUTES SHORT BALL END MILLS Product Specifications
- Varies by size/material removal rate
- Steel Grey or Coated
- High precision, sharp cutting edge, extended tool life, efficient chip removal
- Depends on size (typically 50g)
- Manual / Machine Driven
- TiCN or Uncoated
- Polished or Coated
- Short ball nose, 2 flutes
- N/A (passive tool)
- N/A (Non-powered cutting tool)
- 2mm to 20mm
- External - as per machining requirements
- Vary by size (e.g., 4x50mm, 6x50mm)
- Finishing, contouring, 3D profiling, die & mold machining
- Direct spindle
- CNC Precision Ground
- 2 Flutes Short Ball End Mills
- Solid Carbide
- Common sizes: 2mm to 20mm diameter
Product Description
Product Description
An end mill can be defined as a shank-type milling cutter with a cutting blade on the outer circumferential and end surfaces, a cutting tool that can cut the side of the workpiece with the outer circumferential blade and the top of the workpiece with the bottom blade. Our products are verified and produced based on many years of experience and know-how for high efficiency and high life of tools.

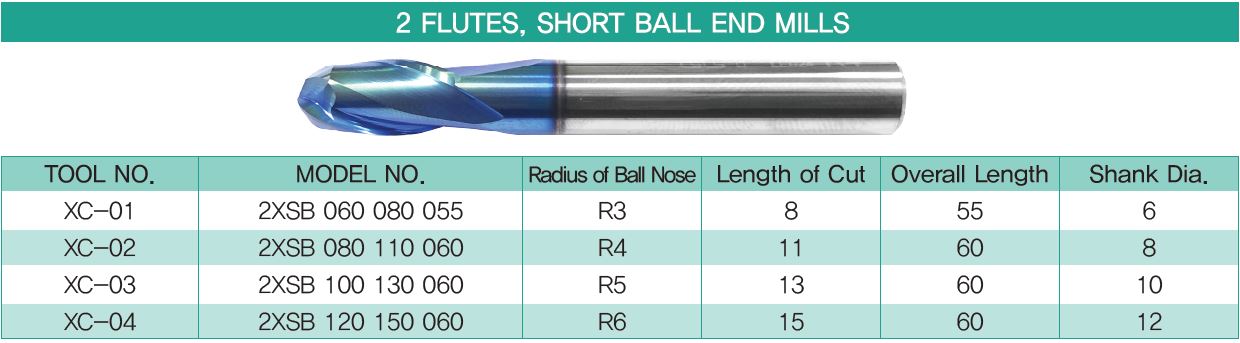

Specification
Company Profile
Enhanced Rigidity with Short Flute Design
The short flute length of these ball end mills, typically ranging from 4 to 10mm, maximizes rigidity during machining operations. This design feature minimizes vibration and chatter, enabling higher precision and smoother finishes, especially in intricate die and mold components.
Versatile Applications Across Materials
Engineered to handle a broad spectrum of materials including steel, alloy steel, cast iron, non-ferrous metals, and plastics, these end mills excel in finishing, contouring, and 3D profiling. Suitable for both manual and CNC operations, their robust build ensures consistent results even in demanding industrial environments.
Precision Manufacturing for Lasting Performance
CNC precision grinding and ISO h6 or better tolerance ensure outstanding concentricity and accuracy. The solid carbide construction, combined with TiCN coating when specified, enhances tool hardness and wear resistance, promoting extended tool life and reduced maintenance frequency.
FAQ's of 2 FLUTES SHORT BALL END MILLS:
Q: How do I select the appropriate diameter for my machining task with these ball end mills?
A: Choose the diameter based on the required profile detail, pocket size, or surface finish in your application. For fine details or miniature work, smaller diameters like 2mm are ideal, while larger diameters up to 20mm suit broader surfaces or deeper contours.Q: What advantages does the short flute length provide during CNC or manual machining?
A: Short flute lengths improve tool rigidity, reducing deflection and vibration. This allows for more precise finishes, greater dimensional accuracy, and longer tool life, especially noticeable in intricate profiling or where stability is crucial.Q: When should I opt for a TiCN-coated versus uncoated end mill?
A: TiCN coating is recommended when machining harder materials or when seeking enhanced tool life and heat resistance. Uncoated tools are suitable for general use or in materials where additional coating benefits are minimal.Q: Where can these short ball end mills be effectively utilized?
A: They are highly effective in die & mold manufacturing, 3D contour profiling, finishing passes, and precise cavity work on CNC machines as well as manual mills, particularly benefitting tasks requiring smooth, complex surfaces.Q: What materials are compatible with 2 flute short ball end mills?
A: These tools work efficiently with steel, alloy steel, cast iron, non-ferrous metals, and a variety of plastics, offering versatility for multi-material workshops or production facilities.Q: How should I determine the optimal cutting speed and feed rate for my application?
A: Refer to the manufacturer's recommendations for both cutting speed and feed. These will vary depending on work material, end mill diameter, and whether the tool is coated. Always consider lubrication and cooling requirements for best results.Q: What are the main benefits of using high-precision, CNC-ground ball end mills from Korean suppliers?
A: These mills offer consistent quality, sharp cutting edges, high tolerance, and extended tool life, resulting in better surface finishes, efficient chip evacuation, and reduced replacement costs for users worldwide.Tell us about your requirement
